Volkwagen fault codes and fault code meanings with solutions.VWcodes.net is here to fix your VW car! We've posted links to pages with diagnostic information about the most common vw fault codes.
Volkswagen Fault Check
Volkswagens are well known for their abundant issues. Volkswager codes can sometimes be confusing and misleading, because Volkswagen engines may display the same symptoms for completely different problems. For example, a random misfire code may occur if an engine is not receiving sufficient fuel, or sometimes as a result of faulty spark plugs. This article breaks down every Volkswageningen error code into its simplest form, providing hints to which parts may be causing your car's issues.Volkswagen Jetta, Passat and other VW models have a wide range of possible error codes. Each code can help you find the source of the problem or shed light on how a particular system on your VW car works. Here are all the different Volkswagens errors codes, what they mean and how to resolve them.Below you will find an overview of all the VW error codes, so that you can easily recognize the errors. Look for the error code, which is always preceded by three numbers. They indicate which VW error has occurred. This information is available in almost all cases in the Internet or from your service advisor.
From the first 1 or 2 digits of a Volkswagen Engine Code you can derive the approximate year and engine size. The remainder of a VW Engine Code is essentially a serial number.

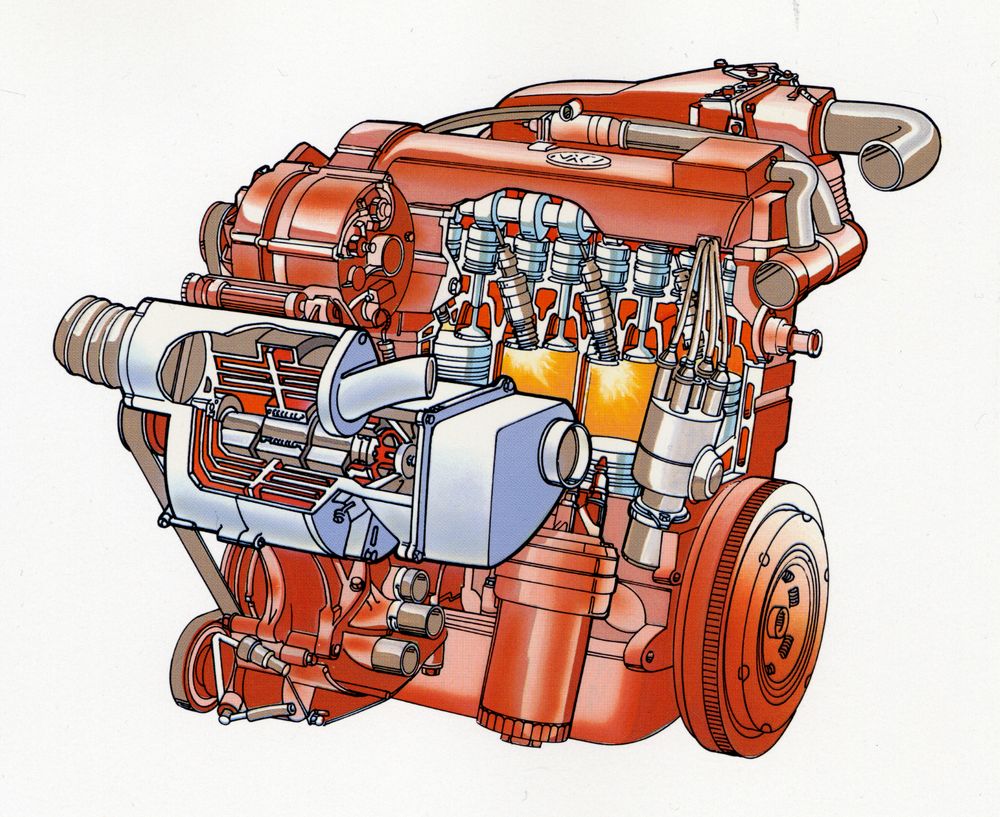

VW Engine Design Layouts :
- I = In-line
- F = Flat (boxer)
- V = Vee
The number of cylinders is given. Then, if required :
- T = Turbocharged
- S = Supercharged
- TS = Turbo-supercharged (twin-charger)
Fuel indicates:
- P = Petrol engine
- D = Diesel
Common VW Faults
The reality of the situation is the reasons behind a vw code have to do with the exhaust system and things that interfere with this system are numerous. These are just a few of the top problems you could be facing when you see that flowing yellow engine:
- Faulty oxygen sensor (0-5)
- Missing gas cap (001-014)
- Catalytic converter (0003-1400)
- Faulty airflow sensor (12000-43000)
- Worn spark plugs (P01200-P30000)
- Thermostat isn't working properly (P0010A-P1100E)
VW Code List
VW 001 - 196 Code Range
VW 00000 - 19900 Code Range
- Page 2
- Page 3
- Page 4
- Page 5
- Page 6
- Page 7
- Page 8
- Page 9
- Page 10
- Page 11
- Page 12
- Page 13
- Page 14
- Page 15
- Page 16
- Page 17
- Page 18
- Page 19
- Page 20
VW 28000 - 29900 Code Range
VW 65200 - 65540 Code Range
VW Engine Codes List
View volkswagen engine types with codes, production years and engine specifications and also check porsche engine codes.
Type 1 | ||
Code | Year | Engine/Notes |
1- | Pre-Jan., 1956 | 25hp/36hp 1- prefix indicates Type 1 and is not part of the sequential engine number. |
2, 3, 4 | 1955-65 | 1200cc 30bhp DIN, 36HP SAE ('A' series engine) |
5, 6, 7, 8, 9 | 1961-65 | 1200cc 34bhp DIN, 40HP SAE (VW D added below serial after 9247364) |
D0, D1 | 1966-1985 | 1200cc 34bhp DIN (German) 40HP SAE For Mexican made 1200s after January, 1978. |
E0 | 1966-1970 | 1300cc 37bhp DIN. Non-USA M240 low compression |
F0, F1, F2 | 1966-1970 | 1300cc 40bhp DIN, 50HP SAE (only 1966 in USA, 66-70 elsewhere) |
H0, H1 | 1967-1970 | 1500cc 44bhp DIN, 53HP SAE (only 1967 in USA, 67-70 elsewhere) |
H5 | 1968-69 | 1500cc 44bhp DIN, 53HP SAE M157 USA/Canada. |
B6 | 1970 | 1600cc Dual relief, single port, 47bhp DIN, 57HP SAE M157 USA/Canada. |
L0 | 1967-1970 | 1500cc 40bhp DIN. Non-USA M240 low compression |
NOTE: all the following 1971-up engines are dual relief and dual port. | ||
AB | 1971-73 | 1300cc 44bhp DIN, Non-USA. |
AC | 1971-72 | 1300cc 40bhp DIN, Non-USA M240 low octane |
AE | 1971 | 1600cc 50bhp DIN, 60HP SAE-gross. USA-only |
AE | 1972-73 | 1600cc 48bhp DIN, 48HP SAE-net. USA-only (compression ratio reduced) |
AF | 1971-1982? | 1600cc 46bhp DIN, Non-USA M240 low octane. |
AH | 1973-74 | 1600cc 48bhp DIN, 46HP SAE-net. USA-only |
AK | 1973 | 1600cc 48bhp DIN, 46HP SAE-net. USA-only |
AJ | 1975-79 | 1600cc 50bhp DIN, 48HP SAE-net. Fuel Injected. |
AR | 1974-75 | 1300cc 44bhp DIN. Non-USA. |
AS | 1974-79 | 1600cc 50bhp DIN. Non-USA. |
ACD | 1992-2004 | 1600cc 46bhp DIN. Mexico. Fuel Injected. |
Type 2 | ||
Code | Year | Engine/Notes |
20- | Pre-Jan., 1956 | 25hp/36hp 20- prefix indicates Type 2 and is not part of the sequential engine number. |
2, 3, 4 | 55-60 | 1200cc, 36hp (includes Bastard 40hp) |
5, 6, 7, 8, 9 | 1961-65 | 1200cc, 40hp |
O | 1963-65 | 1500cc - no cam bearings |
H0 | 1966-67 | 1500cc |
L0 | 1967 | 1500cc M240 low compression |
B0 | 1968-70 | 1600cc non-USA. |
B5 | 1968-69 | 1600cc single relief USA only |
B5 | 1970 | 1600cc dual relief USA only |
C0 | 1968-70 | 1600cc 44bhp. Non-USA. M240 low octane. |
AD | 1971-73 | 1600cc 50bhp DIN. Non-USA. |
AB | 1971 | 1300cc 44bhp DIN, Non-USA. M252 |
AE | 1971 | 1600cc 50bhp DIN, 60HP SAE-gross. USA-only |
AS | 1974-79 | 1600cc 50bhp DIN. Non-USA |
CB | 1972/73 | 1700cc - dual carb., manual transmission |
CD | 1973 | 1700cc - dual carb., automatic transmission |
AW | 1973/74 | 1800cc - dual carb. |
AW | 1975 | 1800cc - fuel-injected |
AP | 1974/75 | 1800cc - European only |
ED | 1975 | 1800cc |
GD | 1976/77 | 2000cc |
CJ | 1976-1979 | 2000cc - European only |
GE | 1978/79 | 2000cc |
CU | 1980-1983 | 2000cc - Vanagon style |
CV | 1980-1983 | 2000cc - Vanagon style |
Type 3 | ||
Code | Year | Engine/Notes |
O | 1961-65 | 1500cc |
K0 | 1966-1972 | 1500cc - 54hp |
M0 | 1966-1972 | 1500cc - M240 low compression 52hp |
P0 | 1966/67 | 1600cc - M240 low compression 50hp |
T0 | 1966-1973 | 1600cc |
U0 | 1968-1973 | 1600cc - fuel injected for USA |
U0 | 1970 | 1600cc - dual-relief case |
U5 | 1971-1973 | 1600cc - 7.7:1 compression - US/Canada M239 California fuel-injection |
X | 1972 | 1600cc - 7.3:1 compression - California |
Type 4 | ||
Code | Year | Engine/Notes |
V | 1969 | 1700cc - 68hp |
Z | 1969/70 | 1700cc - 7.8:1 compression - 68hp, dual carb., automatic transmission |
W | 1971 | 1700cc - 8.2:1 compression - 80hp |
EA | 1972-1974 | 1700cc - 8.2:1 compression - 80hp |
EB | 1973 | 1700cc - California only, fuel injection. 7.3:1 compression - 72hp |
EC | 1974 | 1800cc - 7.3:1 compression - 76hp |
AN | 1974 | 1800cc - 8.6:1 compression |
AT | 1974 | 1800cc - European only, dual carb. |
Porsche 914 | ||
Code | Year | Engine/Notes |
W | 1970/71 | 1700cc - 8.2:1 compression - 80hp |
EA | 1972-1973 | 1700cc |
EB | 1973 | 1700cc - 7.3: compression, California only, fuel injection |
EC | 1974 | 1800cc - California only, 7.6:1 compression |
AN | 1800cc - 8.6:1 compression | |
GA | 1973/74 | 2000cc - 7.6:1 comporession |
GB | 1973-1976 | 2000cc - 8.0:1 compresssion |
GC | 1975/76 | 2000cc - 7.6:1 compresssion |
V0 | 1700cc - European-only 1800cc - European-only 2000cc - European-only |
Engines from VW of Brazil |
GAS-Gasoline / Alcohol-ALC BA - 1600 - BRASILIA (1976) BD - 1600 BEETLE GAS BG - 1600 GAS AND KOMBI KOMBI EXP BJ - 1300 BEETLE GAS BK - 1300 LAC BEETLE BRASILIA BM - 1300 LAC GOL BN - BRAZIL GAS 1600 BV - 1600 GAS VARIANT BX - 1600 LAC KOMBI KOMBI EXP BY - 1300 GOL GAS BZ - 1600 GAS VAN UF - 1600 BEETLE GAS UG - 1600 GAS VAN UJ - 1600 LAC BEETLE UK - 1600 LAC VAN Motors above 90 UFA - 1600 BEETLE GAS UJA - 1600 LAC BEETLE UGA - 1600 GAS VAN CARAT |
VW Diagnostic Trouble Codes (DTCs) and data can be retrieved with VW/Audi Factory Scan Tools such as the VAG 1551, VAG 1552, or the new diagnostic computer VAS 5051 through a Data Link Connector (DLC). For location of the data link connector, see Maintenance section. Several aftermarket scan tools and computer programs are also capable of retrieving this information in this factory mode. The factory mode also allows the scan tool to be used for other system diagnostic functions and information retrieval.
VW Engine VIN Codes :
VW VIN code is an easy way to identify the precise VW you have, how old it is and what type of engine is in it.
Some of the most common World Manufacturing Identifiers are :
- WVW - Volkswagen Cars
- WVG - Volkswagen SUVs (Gelande)
- WV1 - Volkswagen Commercials
- WV2 - Volkswagen Bus, Van
- WV3 - Volkswagen Trucks
- VWV - Volkswagen Spain
- AAV - Volkswagen South Africa
- 1VW - Volkswagen USA (cars)
- 1V1 - Volkswagen USA (commercials)
- 3VW - Volkswagen Mexico
- 8AW - Volkswagen Argentina
- 9BW - Volkswagen Brazil

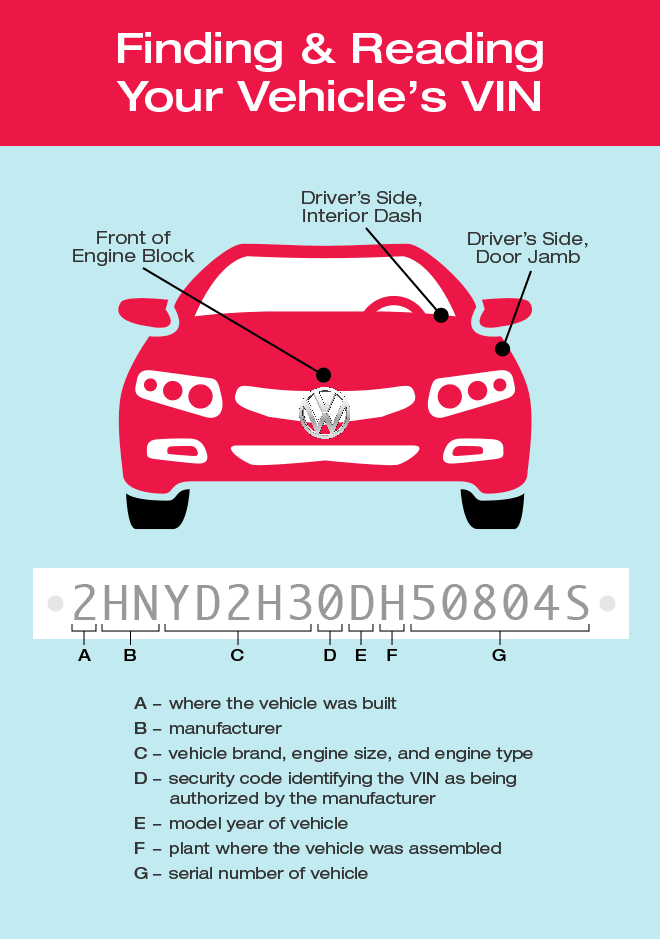

Location Of VW VIN Code
TYPE-1 Vehicles
The location of the chassis (VIN) number on Type 1 vehicles was originally on a small welded on plate in front of the gear lever, later moved to a direct stamping behind the hand brake and then to under the rear seat, in each instance on the chassis back-bone.
TYPE-2 Vehicles
The location of the chassis (VIN) number on Type 2 vehicles for the first few months was on a plate in the centre of the engine bulkhead separating the engine and load area viewed from the rear.
TYPE-3 Vehicles
The Location of the chassis (VIN) number remains under the rear seat during this production period but may also be found visible through the left side of the windscreen on a plate mounted on the top of the dash panel on vehicles produced for certain markets. Notably those destined for the USA.
TYPE-4 Vehicles
Location of the chassis (VIN) number is below the rear seat on the centre of the floor pan, stamped into the metal and punctuated with star like characters.
Serial number format with a space(s) as shown above is notional for written descriptions in service and parts documentation, it does NOT appear with the space(s) when stamped on the vehicle. It is also normal for the stamped number to be punctuated before and after with a star like character. When used in parts and service documentation it will be found like this....
Chassis numbers up to 31st July 1964....
F 1 394 119 -- From Chassis number 1 394 119 F -- F 1 394 119 To Chassis number 1 394 119 F 1 394 119 -- F 1 673 411 From Chassis number 1 394 119 to 1 673 411
After 1st August 1964 the format is like this....
F 112 2000 001 -- From Chassis number 112 2000 001 F -- F 112 2000 001 To Chassis number 112 2000 001 F 112 2000 001 -- F 112 3200 000 From Chassis number 112 2000 001 to 112 3200 000
Actual numbers vary depending on vehicle model, the above relates to Type 1 (Beetle)
Engine numbers without prefix letter....
M 1 678 209 -- From Motor number 1 678 209 M -- M 1 678 209 To Motor number 1 678 209 M 3 924 023 -- M 4 050 000 From Motor number 3 924 023 to 4 050 000
Later formats of engine number with engine series letter will show like this...
M H 0 874 200 -- From Motor number H 0 874 200 M -- H 1 350 000 To Motor number H 0874 200 M H 0874 200 -- H 1 350 000 From Motor number H 0 874 200 to H 1 350 000
